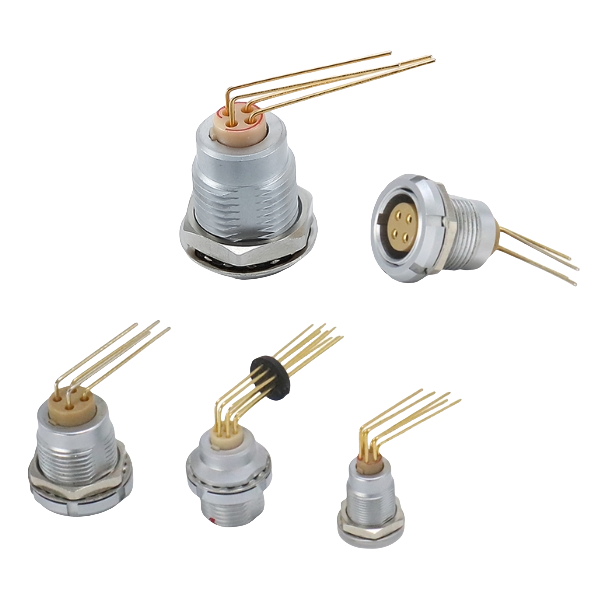

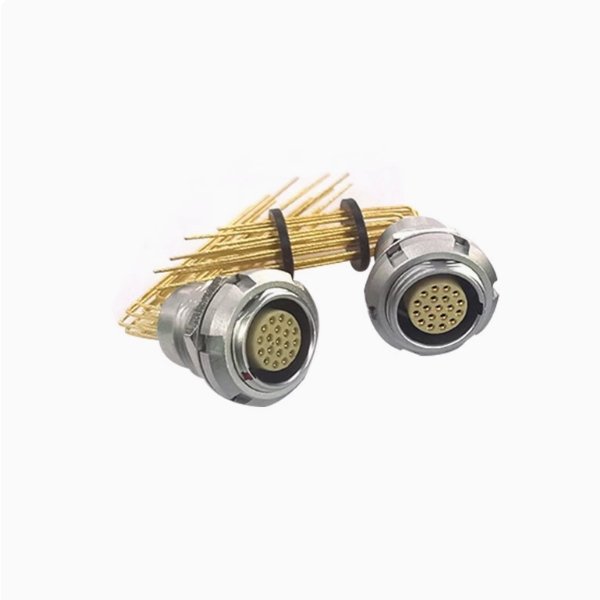

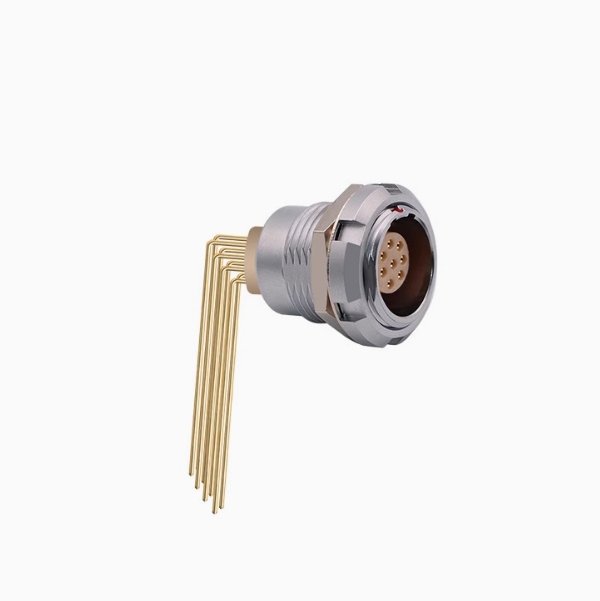

The B-type connector ZCG90° angle contact core circuit board fixed socket is a high-performance fixed socket designed for printed circuit boards. It has a 90° angle contact pin core structure and adopts double nut fixing and rear panel installation. It has the advantages of stability and space optimization. The product supports a variety of positioning pin configurations and is suitable for different installation scenarios. It is widely used in electronic equipment, industrial control, communication and other fields, providing reliable solutions for circuit connection.
1. Product Features
The B-type connector-ZEG connector adopts a 90-degree angle contact pin core design, which effectively saves PCB panel space and adapts to the wiring needs of small areas; the double nut fixing structure greatly improves the vibration and impact resistance of the mechanical connection, ensuring the contact stability in long-term use; the rear panel installation method simplifies the assembly process, and wiring can be completed without penetrating the panel, taking into account the convenience of installation and the neatness of the appearance. In addition, the product supports optional configuration of positioning pins (G type or A-F type) to meet the diverse installation accuracy requirements. The contact pin core is treated with gold plating technology to reduce contact resistance and improve signal transmission efficiency.

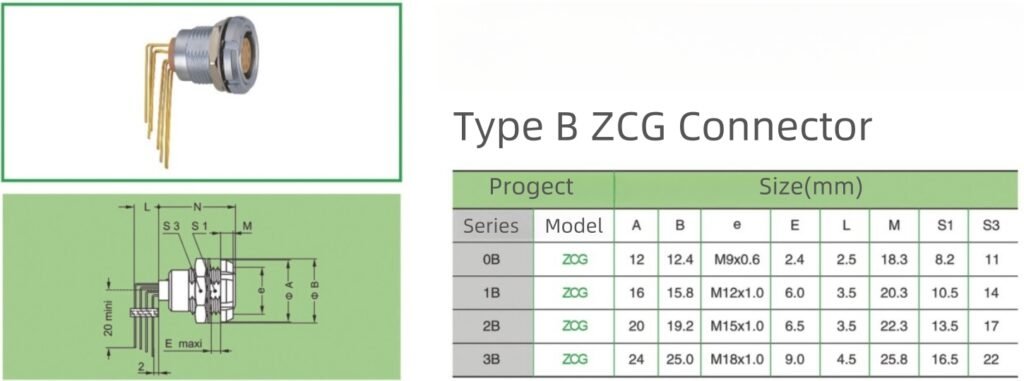

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●90° bent pin plug | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
