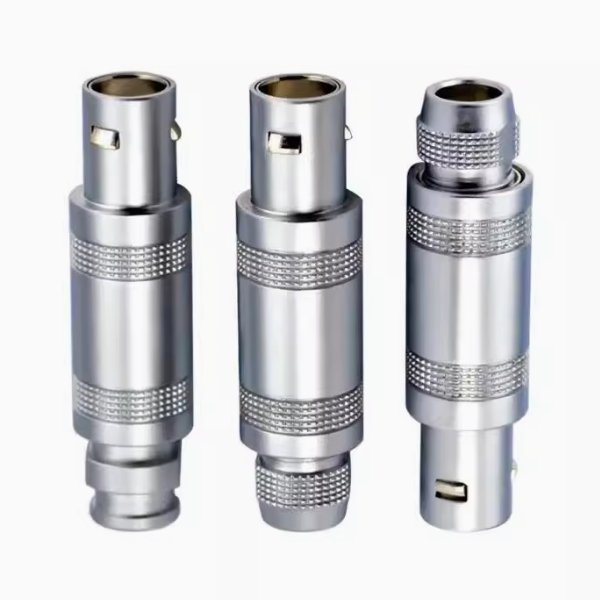

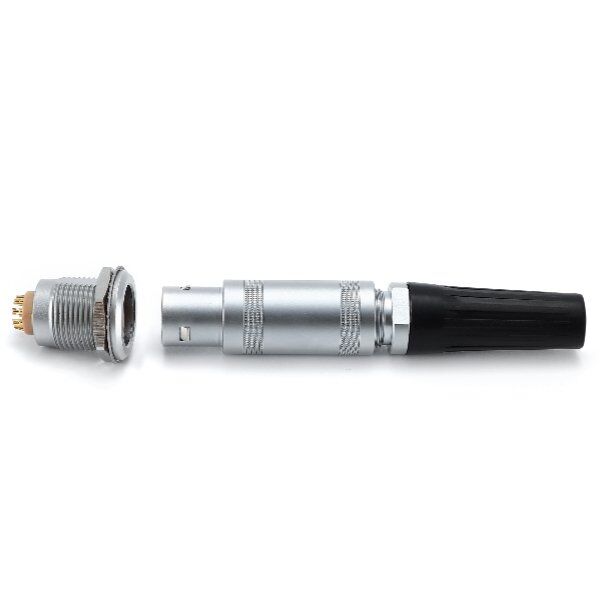

S-type connector-TFA straight plug is a straight electrical connector designed for indoor scenes. It is made of brass nickel-plated material and has excellent conductivity and corrosion resistance. The product is equipped with a cable clamp fixing structure, which can effectively prevent the cable from rotating and ensure the stability of the connection. Its compact straight design is suitable for a variety of cable specifications, suitable for internal signal transmission and power connection of equipment, and provides reliable interface solutions for industries such as industry and communications.
1. Product Features
TFA straight plug is based on a straight structure and adopts a brass nickel-plated shell, which can resist environmental erosion such as moisture and oxidation and prolong its service life. The unique cable clamp design can firmly fix the cable to avoid poor contact caused by external pulling or rotation, ensuring the stability of signal and power transmission. The plug interface is precisely polished and fits tightly when plugged in. It has good dustproof and anti-loosening performance, is suitable for cables of various wire diameters, is easy to install and has strong compatibility, providing reliable guarantee for the stable operation of indoor equipment.

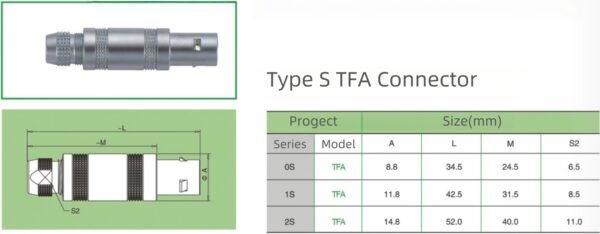

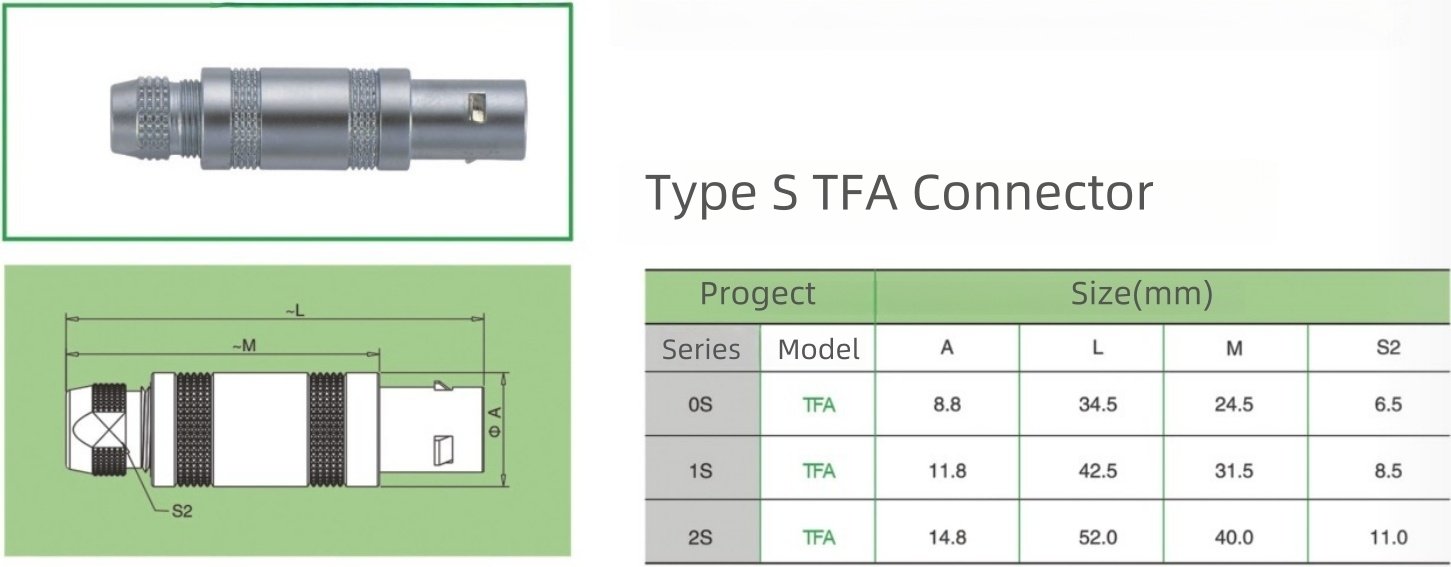

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| S-type connector parameter overview | |
| characteristic | describe |
| Main Features | ●Straight socket with back cover |
| ●Safe push-pull self-locking system | |
| ●2-6 pins | |
| ●High-density installation, space saving | |

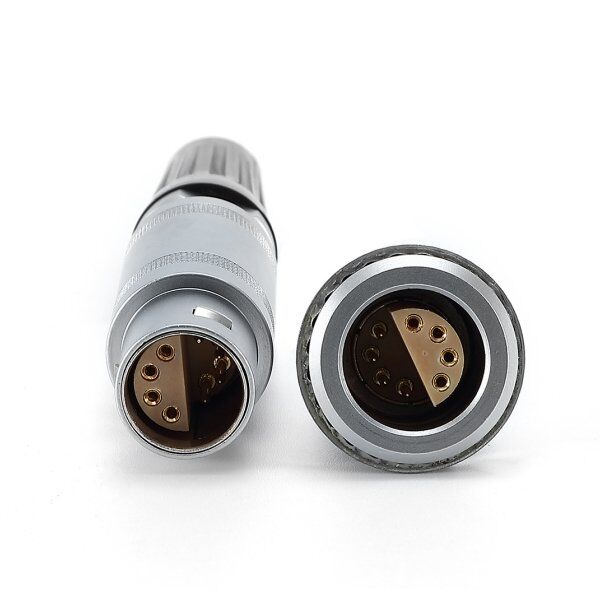

| ●Stepped (half-moon) ferrules are equipped with both male and female contacts, polarity positioning; | |
| ●360-degree shielding provides full range of EMC protection. | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP65~68 | |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
